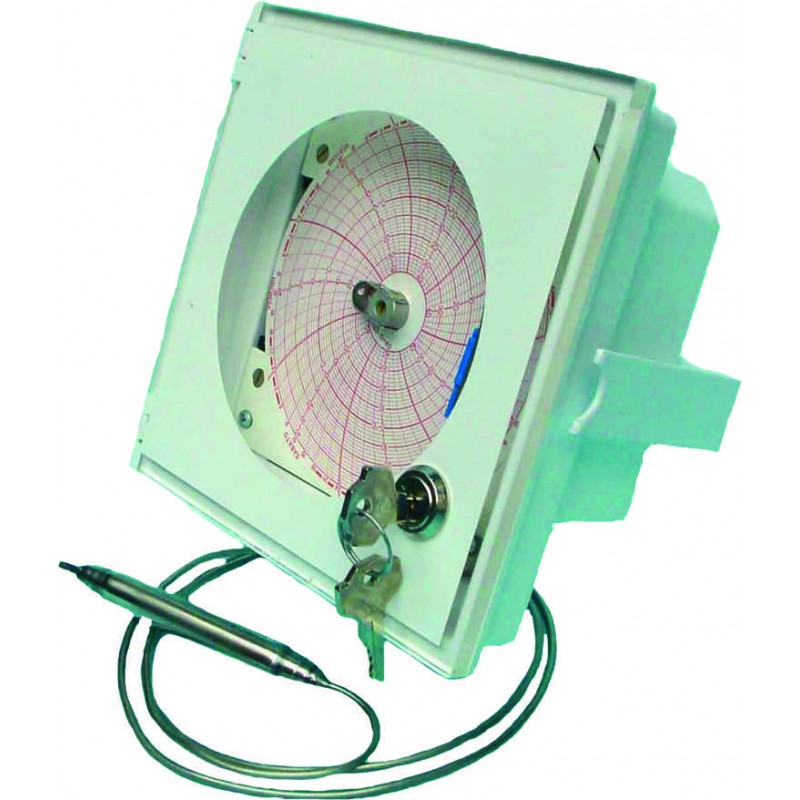

Inert gas graphic thermorecorder RTD-Q-100+50-JR - -100°C

RTD-Q-100+50-JR - -100°C

Inert gas graphic thermorecorder

Technical specifications
Precision ± 2% end off scale
Box Thermoplastic material
Box dimension 132x132 mm
External dimension 148x148 mm
Transparent Policarbonate
Thermometric spring Molybdenum steel
Amplifier movement OT58 with AISI 316 stainless steel pin
Capillary AISI 304 stainless steel
Diagrammatic disk Ø 110 mm
Reader width 40 mm
Clock movement by battery
Battery 1.5 V LR03 alcaline
Protection degrees IP20

Code: 29012120
Model: RTD-Q-100+50-JR
Min temp.: -100°C
Max temp.: +50°C

29012120
