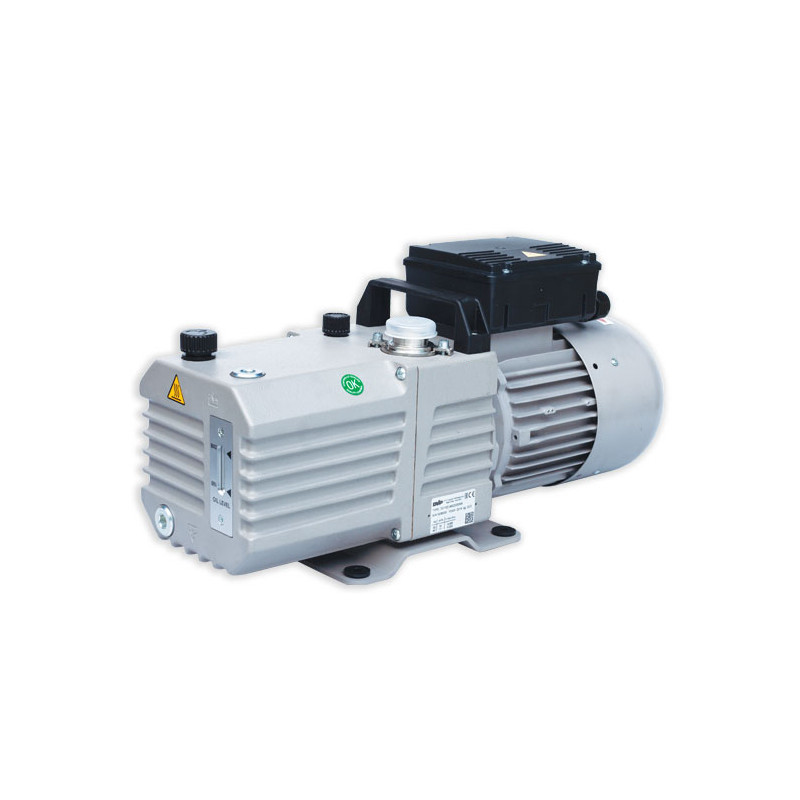

Double stage vacuum pump DC16D-DISTRIB - 320 lt./min
DC16D-DISTRIB - 320 lt./min
320 lt./min. vacuum pump - Connection with flange for 4 way vacuum distributor
This pump type is specifically designed to perform in cooling and air conditioning field. The RC series has the unique capacity of creating a high volume of vacuum making this pump capable of getting rid of the smallest trace of humidity.
320 Lt/min. vacuum pump is sold with the 4 way vacuum distributor.
Available with the RC pump series are:
- built in thermic protection up to 130° C
- handle for transportation
- gas ballast
- on/off switch and cable with schuko plug
- anti suck oil valve included
- bottle of OMV-1/68 oil
- 4 way vacuum distributor
| Technical specifications | ||
| 50 Hz. | 60 Hz. | |
| Max. nominal pumping speed (m3/h) | 20,0 | |
| Pneurop pumping speed (m3/h) | 16,0 | 17,5 |
| Total final pressure (mbar) | 0,005 | |
| Partial final pressure (mbar) | 0,0005 | |
| Final pressure with gas ballast (mbar) | 0,08 | |
| Motor power (Kw) | 0,75-0,90 | |
| Protection degrees | IP54 | |
| R.p.m. | 1400 | 1700 |
| Noise level (at 1 mt.) | 52 | 54 |
| Power supply | 220-240 volts | |
| Operating temperature (°C) | 60-65 | |
| Oil type | OMV-1/68 | |
| Oil quantity (dm3) | 0,62-0,80 | |
| Weight (Kg.) | 26 | |
| Max. inlet pressure for water vapour (mbar) | 25 | |
| Max. water vapour pumping rate (Kg./h) | 0,25 | |
Code: 03005008
Model: DC16D-DISTRIB
Flow rate: 320 lt./min
4-way vacuum distributor: Yes
03005008
