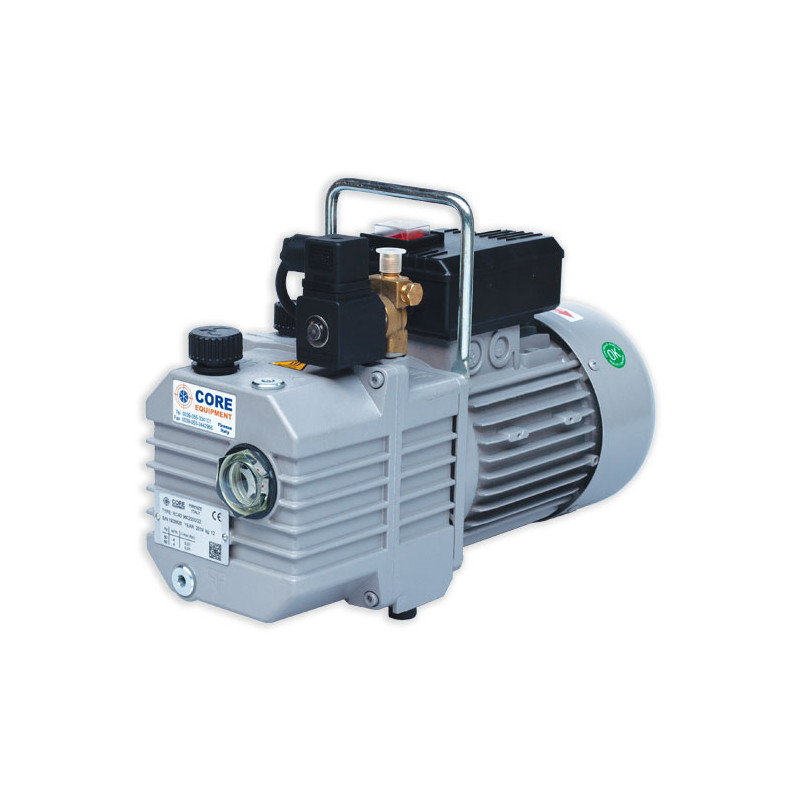

Double stage vacuum pump RC4D-E-V - 67 lt./min
RC4D-E-V - 67 lt./min
67 lt./min. vacuum pump
This pump type is specifically designed to perform in cooling and air conditioning field. The RC series has the unique capacity of creating a high volume of vacuum making this pump capable of getting rid of the smallest trace of humidity.
It is a lightweight, easy-to-carry and easy-to-handle pump.
Available with the RC pump series are:
- built in thermic protection up to 130° C
- handle for transportation
- gas ballast
- on/off switch and cable with schuko plug
- anti suck oil valve
- bottle of OMV-1/68 oil
| Technical specifications | ||
| 50 Hz. | 60 Hz. | |
| Max. nominal pumping speed (m3/h) | 5,0 | |
| Pneurop pumping speed (m3/h) | 4,0 | 4,6 |
| Total final pressure (mbar) | 0,01 | |
| Partial final pressure (mbar) | 0,005 | |
| Final pressure with gas ballast (mbar) | 0,2 | |
| Motor power (Kw) | 0,37 | |
| Protection degrees | IP54 | |
| R.p.m. | 1400 | 1700 |
| Noise level (at 1 mt.) | 52 | 54 |
| Power supply | 220-240 volts | |
| Operating temperature (°C) | 50-55 | |
| Oil type | OMV-1/68 | |
| Oil quantity (dm3) | 0,35 | |
| Weight (Kg.) | 12 | |
| Max. inlet pressure for water vapour (mbar) | 20 | |
| Max. water vapour pumping rate (Kg./h) | 0,05 | |
Code: 03003050
Model: RC4D-E-V
Flow rate: 67 lt./min
Electric valve: Yes
Vacuum gauge: Yes
03003050
