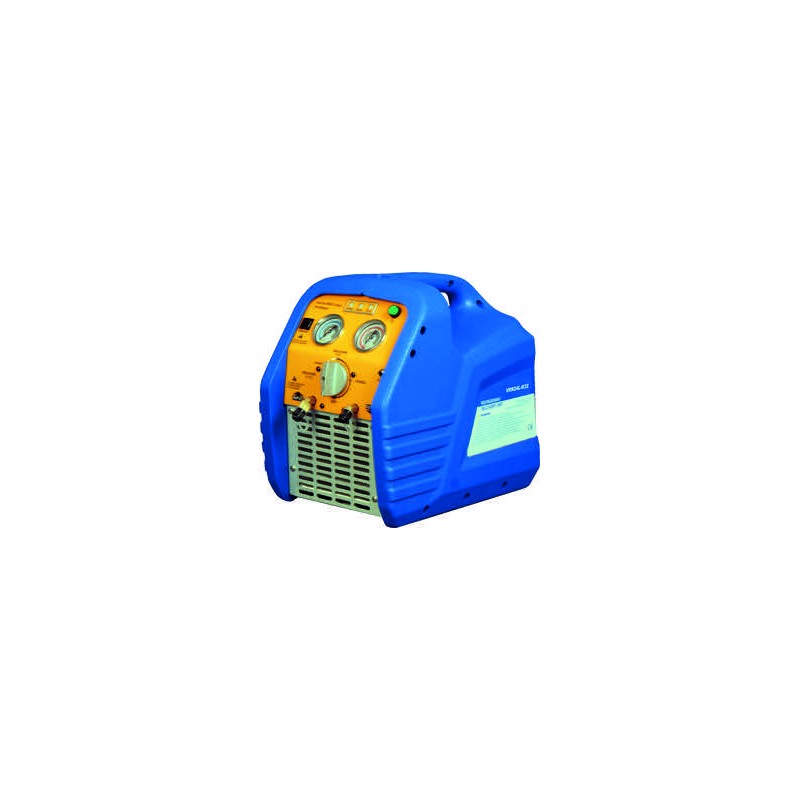

UR 24/32 - Recovery unit - 1 HP - Without oil separation

UR 24/32 - Recovery unit - 1 HP - Without oil separation

Recovery Units available for all refrigerants, including R32 and R1234 YF - UR-SO 12/32 type (3/4 Hp) is equipped with oil separator - UR 24/32 type (1 Hp) has no oil separator - Both unit types are equipped with internal high and low pressostats - Easy to use and to carry models (kg. 14.7 and 16 kg.) - Oil free Internal compressor - Lubrication free.

Technical specification
Power 110V~120V/60Hz; 220V~240V/50~60Hz
Motor 1HP
Motor speed 1450 RPM@50Hz / 1750 RPM@60Hz
Maximal current draw 110V: 10A; 220V: 5A
Compressor Oil-less, Air-cooled, Piston
High pressure shut-off 38.5bar/3850kPa (558psi)
Operating temperature 0°C~40°C/32°F~104°F
Dimensions 45X25X35,5 cm
Net Weight 16 kg

Refrigerants
Category III R12 - R134A - R401C - R406A - R500 - R1234YF
Category IV R22 - R401A - R401B - R402B - R407C - R407D - R408A - R409A - R411 - R411B R412A - R502 - R509
Category V R402A - R404A - R407A - R407B - R410A - R507 - R32

Intake Speed
Refr. Category III Category IV Category V
Liquid kg./min 3 3.50 3.50
Push / Pull 7.50 8.50 9.50
The flow rate of vapour is direct proportion to inlet pressure

Code: 01003023
Model: UR 24/32
Description: Recovery unit - 1 HP - Without oil separation
