01003070 - ADF - ATEX Recovery Unit for Flammable Refrigerants
01003070 - ADF - ATEX Recovery Unit for Flammable Refrigerants

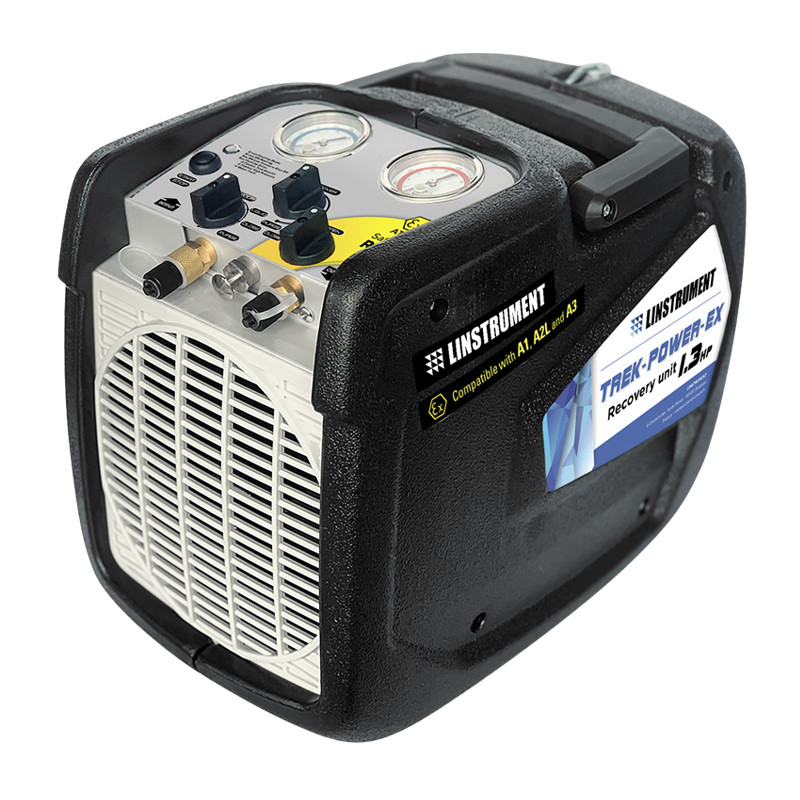

ATEX certified flammable refrigerant recovery unit, with powerful dry piston compressor driven by a 1.3 HP brushless motor, has a simple user interface with high and low pressure indicators. The inlet (equipped with a particulate filter) and outlet ports are easy to access; it is equipped with a high air flow fan with microchannel condenser to keep the unit cool. ATEX II3Gex d IIB T4 Gb tested and approved explosion-proof design. Can be used with all A3 and A2L gases.
| Specifiche tecniche | ||
| Electrical supply | 100V~240V/60Hz; 220V~240V/50~60Hz | |
| Horse power | 1,3 HP | |
| Giri motore | 3000 RPM | |
| Maximum current | 13.0 amps | |
| Compressor type | 2-cylinder dry / air-cooled | |
| High pressure interruption | 550 PSIG | |
| Operating temperature range | 32° - 120°F | |
| Dimensions | 370 mm x 245 mm x 310 mm | |
| Weight | 11,3 kg | |
| Refrigerants | |
| AHRI740 Class II | R600 |
| AHRI740 Class III | R12, R134a, R401 C, R406A, R500 |
| AHRI740 Class IV, Type A3 | R22, R290, R401A/B, R402B,R407C/D/E/F, R408A, R409A, R411A/B, R412A, R502, R509A |
| AHRI740 Class V | R402A, R404A, R407A/B, R410A/B, R507A |
| AHRI740 Class V, Type A2L | R32 |
| ARHI740-2016 Recovery data, certified by UL | ||||
| Refrigerants | Liquid steam | Liquid direct |
Liquid Push-Pull |
High temperature steam |
| R22 - R290 | 0.35 kg/min | 5 kg/min | 10 kg/min | 0.45 kg/min |
| R134a - R600 | 0.30 kg/min | 4 kg/min | 7 kg/min | - |
| R410a | 0.40 kg/min | 6 kg/min | 11 kg/min | - |
| R32 | 0.40 kg/min | 6 kg/min | - | - |
Code: 01003070
Model: ADF
Description: ATEX Recovery Unit for Flammable Refrigerants
01003070
